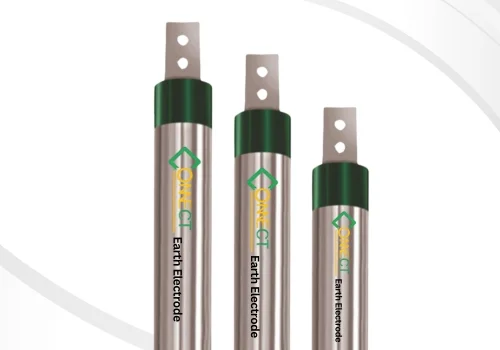

G.I. Earthing Electrode (Pipe-In-Pipe / Strip-In-Pipe)

Our G.I. Earthing Electrode features a primary G.I. conductor (outer pipe) and a secondary G.I. conductor (inner pipe/strip), with galvanization ranging from 80 to 100 microns. The secondary conductor is inserted inside the primary conductor, and the space between them is filled with a highly conductive, non-corrosive compound. This compound protects the electrode from corrosion over extended periods, ensuring long-lasting performance even when buried in soil.

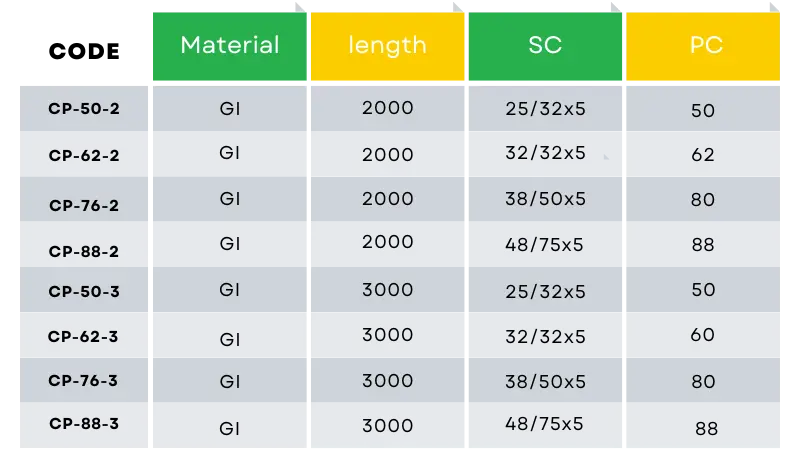

Note :- All measurements are in MM, PC = Primary Conductor & SC = Secondary Conductor

Why Earthing & Lightning Protection System?

Earthing ensures a low impedance path for leakage and excessive currents to flow safely into the ground, protecting human life, property, and equipment from electrical hazards. It shields against lightning strikes, power surges, and static electrical charges. Effective earthing also directs fault currents and lightning to the ground safely, maintaining equipment reliability.

The Lightning Protection System (LPS) protects structures from direct lightning strikes and internal surges in electrical and communication networks.

In Pune, where thunderstorms are common, these systems:

  • Intercept lightning with air terminals.
  • Safely conduct the current away from structures.
  • Disperse it into the ground through the earthing system.
