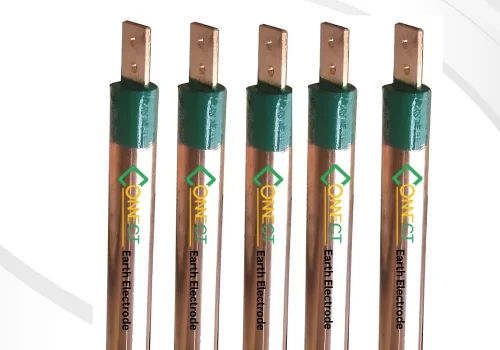

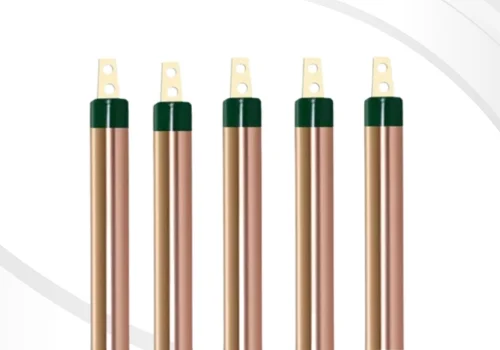

Our Copper Bonded / Coated Earthing Electrode features a primary M.S. conductor molecularly bonded with 99.9% pure copper (outer pipe), and a secondary M.S. inner strip also bonded with 99.9% pure copper. The secondary conductor is inserted inside the primary conductor, with the space between them filled with a highly conductive, non-corrosive compound. This compound ensures the electrode remains free from corrosion over time, even when installed underground.
This construction enhances the electrode’s durability, making it ideal for grounding systems that require efficient, long-lasting performance under challenging conditions.

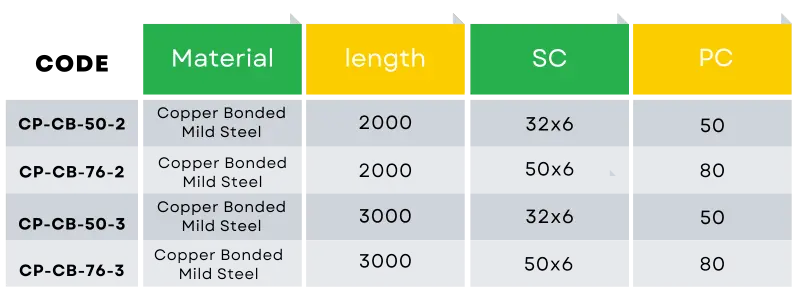

Note :- All measurements are in MM, PC = Primary Conductor & SC = Secondary Conductor
Note :- All measurements are in MM, PC = Primary Conductor & SC = Secondary Conductor
Why Earthing & Lightning Protection System?
Earthing ensures a low impedance path for leakage and excessive currents to flow safely into the ground, protecting human life, property, and equipment from electrical hazards. It shields against lightning strikes, power surges, and static electrical charges. Effective earthing also directs fault currents and lightning to the ground safely, maintaining equipment reliability.
The Lightning Protection System (LPS) protects structures from direct lightning strikes and internal surges in electrical and communication networks.
In Pune, where thunderstorms are common, these systems:
Intercept lightning with air terminals.
Safely conduct the current away from structures.
Disperse it into the ground through the earthing system.
